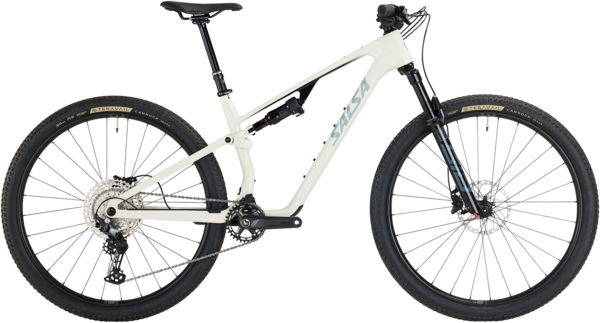

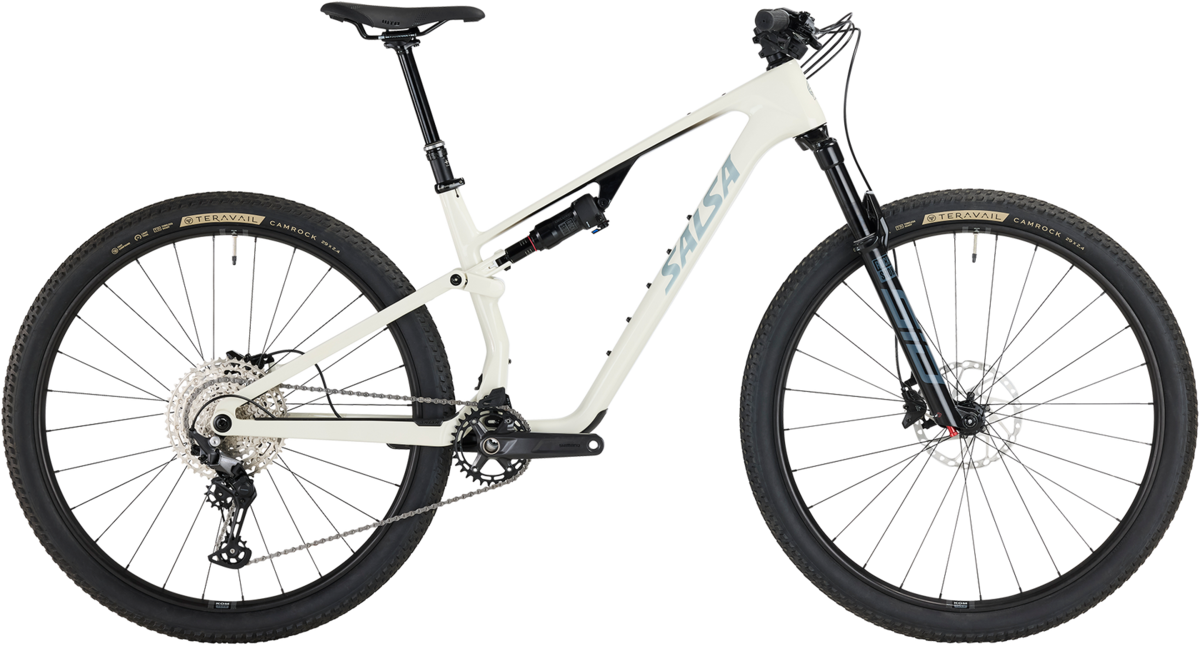

Salsa Spearfish C Deore 12
Details
Spearfish is Salsa’s endurance XC bike. It’s built to thrive in the world’s toughest single- and multi-day races, from Marji Gesick to the Arizona Trail Race. Spearfish is lightweight, efficient, and capable — a formula that makes all the difference in the 11th hour.
- Carbon fiber frame, seatstays, and chainstays with 6061-T6 aluminum links for durability
- Split Pivot suspension design features 120mm of travel that’s responsive when putting down power, fully active under braking, and supportive throughout the middle and end of its stroke, paired with a 120mm suspension fork
- Split Pivot + design philosophy lets riders adjust rear travel from 100–120mm; compatible with 100–130mm forks
- Endurance XC geometry with 66.3-degree head tube angle and 77.3-degree seat tube angle
- Rear flip chip adjusts the head tube angle and bottom bracket height to accommodate varying terrain and personal preference
- Sizes XS–SM fit two full-size bottles, plus accessory mount; sizes MD–XL fit three full-size bottles
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Effective Top Tube (mm/in) | 567.8–568.6 mm (22.3–22.4") | 584.9–585.7 mm (23.0–23.1") | 606.9–607.7 mm (23.9–23.9") | 629.0–629.8 mm (24.8–24.8") | 651.1–651.9 mm (25.6–25.7") |
| Stand Over (mm/in) | 716.4–719.1 mm (28.2–28.3") | 716.3–719.2 mm (28.2–28.3") | 716.3–719.2 mm (28.2–28.3") | 716.2–719.3 mm (28.2–28.3") | 716.2–719.3 mm (28.2–28.3") |
| Reach (mm/in) | 431.4–435.0 mm (17.0–17.1") | 446.5–450.0 mm (17.6–17.7") | 466.5–470.0 mm (18.4–18.5") | 486.4–490.0 mm (19.1–19.3") | 506.5–510.0 mm (19.9–20.1") |
| Stack (mm/in) | 589.3–591.9 mm (23.2–23.3") | 598.4–601.1 mm (23.6–23.7") | 607.6–610.3 mm (23.9–24.0") | 616.7–619.6 mm (24.3–24.4") | 625.9–628.8 mm (24.6–24.7") |
| Seat Tube Length (mm/in) | 380.0 mm (15.0") | 405.0 mm (15.9") | 430.0 mm (16.9") | 455.0 mm (17.9") | 480.0 mm (18.9") |
| Headtube Length (mm/in) | 95.0 mm (3.7") | 105.0 mm (4.1") | 115.0 mm (4.5") | 125.0 mm (4.9") | 130.0 mm (5.1") |
| Headtube Angle (degrees) | 66.3° – 66.0° | 66.3° – 66.0° | 66.3° – 66.0° | 66.3° – 66.0° | 66.3° – 66.0° |
| Seat Tube Angle (degrees) | 77.3° – 77.0° | 77.3° – 77.0° | 77.3° – 77.0° | 77.3° – 77.0° | 77.3° – 77.0° |
| Bottom Bracket Drop (mm/in) | 31.0–35.4 mm (1.2–1.4") | 31.0–35.5 mm (1.2–1.4") | 31.0–35.5 mm (1.2–1.4") | 31.0–35.6 mm (1.2–1.4") | 31.0–35.6 mm (1.2–1.4") |
| Bottom Bracket Height (mm/in) | 337.6–342.0 mm (13.3–13.5") | 337.5–342.0 mm (13.3–13.5") | 337.5–342.0 mm (13.3–13.5") | 337.4–342.0 mm (13.3–13.5") | 337.4–342.0 mm (13.3–13.5") |
| Chainstay Length (mm/in) | 430.0–431.2 mm (16.9–17.0") | 430.0–431.2 mm (16.9–17.0") | 430.0–431.2 mm (16.9–17.0") | 430.0–431.2 mm (16.9–17.0") | 430.0–431.2 mm (16.9–17.0") |
| Fork Length (Axle to Crown) (mm/in) | 530.0 mm (20.9") | 530.0 mm (20.9") | 530.0 mm (20.9") | 530.0 mm (20.9") | 530.0 mm (20.9") |
| Fork Offset (mm/in) | 44.0 mm (1.7") | 44.0 mm (1.7") | 44.0 mm (1.7") | 44.0 mm (1.7") | 44.0 mm (1.7") |
| Wheelbase (mm/in) | 1157.0–1157.7 mm (45.6–45.6") | 1176.1–1176.7 mm (46.3–46.3") | 1200.0–1200.7 mm (47.2–47.3") | 1224.1–1224.7 mm (48.2–48.2") | 1248.1–1248.7 mm (49.1–49.2") |
| Crank Arm Length (mm/in) | 165.0 mm (6.5") | 165.0 mm (6.5") | 165.0 mm (6.5") | 170.0 mm (6.7") | 170.0 mm (6.7") |
| Handlebar Width (mm/in) | 760.0 mm (29.9") | 760.0 mm (29.9") | 800.0 mm (31.5") | 800.0 mm (31.5") | 800.0 mm (31.5") |
| Recommended Rider Height (mm/in) | 146.0–159.0 cm (4'9"–5'2") | 157.0–170.0 cm (5'2"–5'7") | 168.0–180.0 cm (5'6"–5'11") | 178.0–191.0 cm (5'10"–6'3") | 188.0 cm (6'2") |
| Stem Length (mm/in) | 40.0 mm (1.6") | 40.0 mm (1.6") | 40.0 mm (1.6") | 40.0 mm (1.6") | 40.0 mm (1.6") |
Specs
| Frame | Spearfish Carbon |
|---|---|
| Fork | RockShox SID, 120mm |
| Rear Shock | RockShox Deluxe Select+ |
| Rims | WTB KOM Team i30 TCS, 28h |
| Hubs | Front: Shimano TC500-15-B 15x110mm Rear: Shimano TC500-MS-B 12x148mm |
| Spokes | Butted stainless steel, black |
| Tires | Teravail Camrock 29x2.4", Light Trail casing, WTB TCS Sealant included |
| Bottom Bracket | Shimano MT500 Press-Fit |
| Crankset | Shimano Deore MT512, 32t; MRP 1x SL TR2 28-34t Direct Mount Guide |
| Shifters | Shimano Deore M6100, I-Spec EV |
| Rear Derailleur | Shimano Deore M6100-SGS |
| Cassette/Freewheel | Shimano Deore M6100, 10–51t, 12-speed |
| Chain | Shimano Deore M6100, HYPERGLIDE+ |
| Brakes | Shimano Deore MT-M410 |
| Rotors | Shimano Deore RT64 (Center Lock, 180mm front and rear) |
| Brake Levers | Shimano Deore M4100 |
| Handlebars | Alloy riser |
| Tape/Grips | Salsa File Tread Lock-on |
| Stem | Salsa 35.0 Guide Trail, 50mm |
| Headset | FSA Orbit 1.5E ZS NO.57E |
| Seatpost | TranzX YSI05 RAD+ Dropper Post w/ Shimano SL-MT500 I-Spec EV Lever, XS: 125mm travel; SM–MD: 150mm travel; LG–XL: 170mm travel |
| Saddle | WTB Silverado, Medium, Cromoly, DNAx |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Bone White / X-Small / 29-Inch | 657993414200 | 06-003627 | |
| Bone White / Small / 29-Inch | 657993414224 | 06-003627 | |
| Bone White / Medium / 29-Inch | 657993414248 | 06-003627 | 210000004681 |
| Bone White / Large / 29-Inch | 657993414262 | 06-003627 | |
| Bone White / X-Large / 29-Inch | 657993414286 | 06-003627 |
